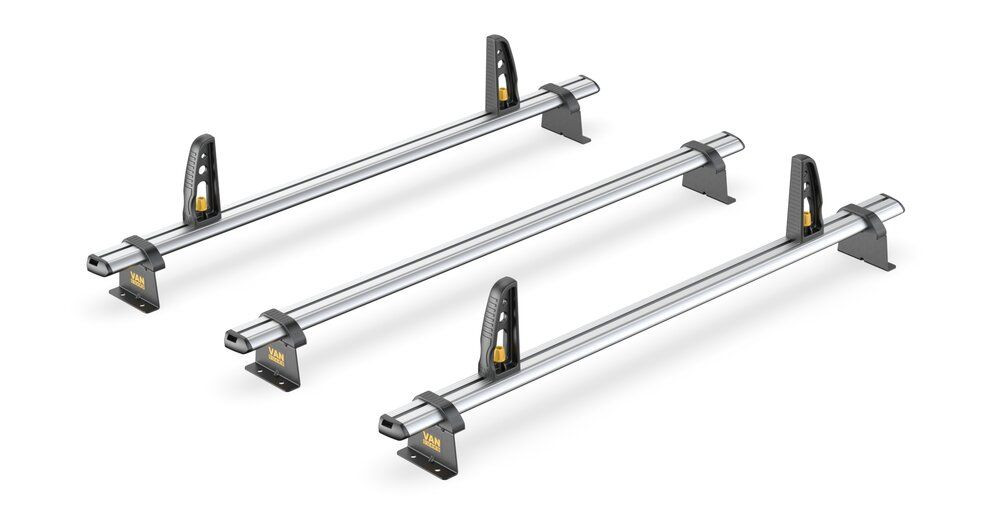

ULTI Bar+ (Aluminium) - 3x Roof Bars with 4x Load Stops - L1H1 model - Y83/Y91 - 75001030

Name: ULTI Bar+ (Aluminium) - 3x Roof Bars with 4x Load Stops - L1H1 model - Y83/Y91 - 75001030
SKU: 75001030
Price: 289.56 GBP
Availability: InStock

ULTI Bars are made from anodised aluminium so won't corrode. Lightweight and extremely strong.

Includes 2 pairs of easily adjustable load stops.

Range of roof accessories available to fit the innovative T-track.

Van-specific product in terms of design and fitting.

Only suitable for L1H1 models.

Comes complete with galvanised powder-coated steel brackets.

One-person fit. Approximate fitting time 20 minutes.

No drilling of the roof is required to fit this product.

Each individual ULTI Bar has been tested up to 80kg per bar. Maximum load is in accordance with the vehicle manufacturer's load-bearing capacity (refer to vehicle handbook).

Show more

Quantity

SKU: 75001030

DETAILS

DOES IT FIT?

SPECS

NEED HELP?

DETAILS
Product Details

ULTI Bars are made from anodised aluminium so won't corrode. Lightweight and extremely strong.
Includes 2 pairs of easily adjustable load stops.
Range of roof accessories available to fit the innovative T-track.
Van-specific product in terms of design and fitting.
Only suitable for L1H1 models.
Comes complete with galvanised powder-coated steel brackets.
One-person fit. Approximate fitting time 20 minutes.
No drilling of the roof is required to fit this product.
Each individual ULTI Bar has been tested up to 80kg per bar. Maximum load is in accordance with the vehicle manufacturer's load-bearing capacity (refer to vehicle handbook).

DOES IT FIT?
Compatability
Vehicle Position SKU
Transit Custom (2024 - ) L1H1, Dual Sliding Doors y83-for-2-l1-41-sdd
Transit Custom (2024 - ) L1H1, Nearside Sliding Door y83-for-2-l1-41-sdl
Transporter T7 (2025 - ) L1H1 Dual Sliding Doors y91-vol-2-l1-41-sdd
Transporter T7 (2025 - ) L1H1, Nearside Sliding Door y91-vol-2-l1-41-sdl
Transit Custom (2024 - ) L1H1, DCiV Crew Van y83-for-2-l1-41-od

SPECS
Specifications & Dimensions

Part No. (Erp) 75001030
Width 1400 mm
Height 105 mm
Net Weight 8.30 kg
Ean Code 4049751957887
Product Material Aluminium
Product Surface Anodised
Main Colour Silver
